By Sam. Last verified 4 September 2026.
The ADA puts grab bars at 33 to 36 inches above the finished floor, measured to the top of the gripping surface. Beside a toilet, the side wall bar is 42 inches minimum and the rear wall bar is 36 inches minimum. The bar itself is 1.25 to 2 inches in diameter with 1.5 inches of clearance to the wall, and the whole assembly must resist 250 pounds in any direction.
The important thing to understand before using any of this in a house: the ADA is a civil rights law for public accommodations and commercial facilities. It does not apply to a private home. The numbers are still the best available guidance, because they were derived from research on how people actually fall and catch themselves. But nobody is going to inspect your bathroom, and you are free to deviate where deviation serves the person using it.
Numbers to keep in mind
- Grab bar height: 33 to 36 inches above the finished floor, to the top of the gripping surface (ADA 609.4).
- Gripping surface diameter: 1.25 to 2 inches for a circular section (609.2.1).
- Clearance between bar and wall: 1.5 inches (609.3).
- Strength: the bar, its fittings and the supporting structure must resist 250 pounds in any direction (609.8).
- Water closet side wall bar: 42 inches minimum, no more than 12 inches from the rear wall (604.5.1).
- Water closet rear wall bar: 36 inches minimum (604.5.2).
The dimensions, and what each one is for
| Requirement | Number | Why |
|---|---|---|
| Height | 33 to 36 in | The band where a standing or seated adult can push down on the bar with a straight-ish arm |
| Diameter | 1.25 to 2 in | Thin enough for the fingers to close around, thick enough not to cut into the palm |
| Wall clearance | 1.5 in | Room for the fingers, but not so much that a falling arm can slip through and jam |
| Strength | 250 lbf | A falling adult loads a bar far beyond their body weight |
| Side wall bar length | 42 in min | Long enough to support the whole transfer on and off a toilet |
| Rear wall bar length | 36 in min | Spans the width behind the fixture |
The 1.5 inch clearance is the requirement people most often break, usually by choosing a decorative bar with a wide flange or by mounting a bar over a tile lip. It exists for a specific reason: if the gap is larger, a forearm can pass behind the bar during a fall and become trapped, which turns a slip into a fracture.
What a home actually needs
Here is the honest version, separated from the legal one.
Keep the height. 33 to 36 inches is well founded and there is no good reason to move away from it unless the user is unusually tall or short, in which case adjust to their reach and note that you have.
Keep the diameter and the clearance. These are about the hand and the arm, and human hands do not vary by building type. A decorative bar that fails the clearance rule is a worse bar.
Keep the 250 pounds, absolutely. This is the requirement that matters most and the one most often ignored in domestic work, because it depends on what is behind the wall rather than what you bought.
Treat the lengths as guidance. A 42 inch bar beside a domestic toilet is often impossible, because there is a vanity or a wall in the way. A shorter bar correctly positioned and properly fixed is far better than no bar. This is the requirement where a house legitimately differs from a public washroom.
Ignore the layout requirements written for wheelchair transfer unless somebody transfers from a wheelchair. Much of the ADA's bathroom geometry is about clear floor space for a chair, and it is irrelevant to a household where the concern is an unsteady person on their feet.
Where residential codes do apply
The ADA does not reach private homes, but other things sometimes do. Multi-family housing can fall under the Fair Housing Act, which has its own requirements, generally around reinforcement in walls rather than installed bars. Some state and local codes require blocking in new bathroom walls so that grab bars can be added later. And accessible units in apartment buildings may be covered by ANSI A117.1, which is where many local codes actually point.
If you are building rather than retrofitting, put plywood blocking in every bathroom wall at 32 to 38 inches before the board goes on. It costs very little at that moment, it satisfies most anticipatory requirements, and it means a bar can be added anywhere on that wall later without opening anything.
Choosing a length that fits the wall you have
Length is dictated by framing as much as by the standard. On 16 inch centres, flange spacings that land on studs are limited, so decide the position first, find the studs, and then choose the bar that fits.
A 36 inch bar is the workhorse. 24 inches suits a control wall or a vertical entry bar. 16 inches spans a single stud bay. A 9 inch assist bar can put both flanges on one stud, which is the strongest and simplest fixing available in a retrofit.
Bars in this catalogue and how they measure up
The range is in Bath Safety and Grab Bars, with the decorative range at Kohler Artifacts.

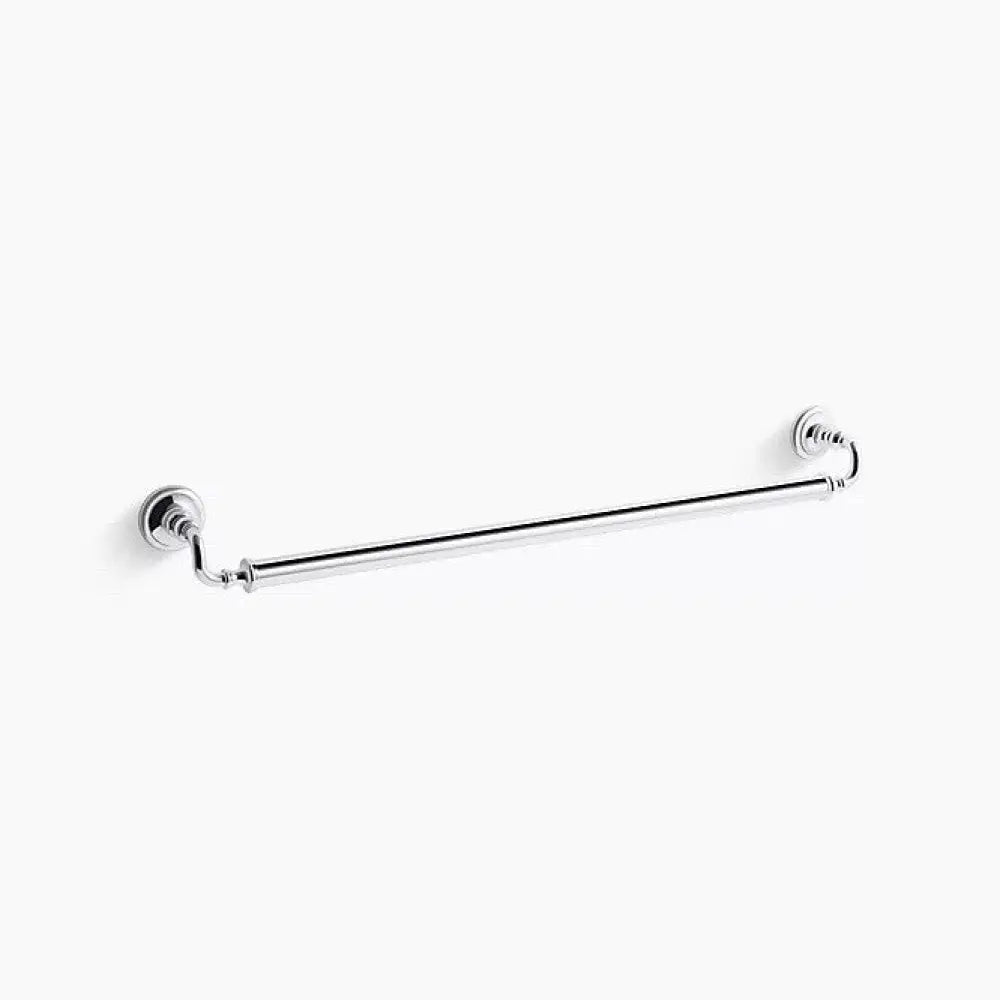

- Kohler K-25157-CP Artifacts 36in Grab Bar, polished chrome. Meets the 36 inch rear wall minimum.
- Kohler K-REC32801-2BZ Cardale 36in Grab Bar, oil-rubbed bronze. The plain equivalent.
- Kohler K-REC30196-2BZ Cardale 24in Grab Bar, oil-rubbed bronze. Below the ADA lengths, and the right answer on many domestic walls.
- Kohler K-REC30195-2BZ Cardale 16in Grab Bar, oil-rubbed bronze. For a single stud bay.
We do not carry a 42 inch bar. If you are specifying to the ADA for a commercial project and need that length, Bobrick and Moen both carry full commercial ranges, and a plumbing supply house will have them in stock.
Frequently asked questions
What is the ADA height for a grab bar?
33 to 36 inches above the finished floor, measured to the top of the gripping surface. That applies to horizontal bars in showers and beside toilets.
How long does an ADA grab bar have to be?
Beside a toilet, 42 inches minimum on the side wall and 36 inches minimum on the rear wall. Shower requirements vary with the type of shower compartment.
Does the ADA apply to my house?
No. The ADA covers public accommodations and commercial facilities. Its numbers are still the best available guidance for a home, and the height, diameter, clearance and strength requirements are all worth following.
How much weight must a grab bar hold?
250 pounds of force in any direction, applied to the bar, its fittings and the supporting wall structure together. The bar alone is never the limiting factor; what it is fixed to usually is.
