By Frank. Last verified 4 September 2026.
Installing a chandelier is a short electrical job attached to a structural question, and the structural question is the one that matters. Before any wire is touched, you need to know what the fixture weighs and what the box in the ceiling is rated to carry. Get that right and the rest is three wires and a nut driver. Get it wrong and the fixture comes down, usually onto a table.
The governing number in the United States is 50 pounds. A standard outlet box listed for luminaire support carries up to 50 pounds. Anything heavier has to be supported independently of the box, per the National Electrical Code, article 314.27.
Numbers to keep in mind
- Standard listed outlet box: supports up to 50 pounds.
- Over 50 pounds: the fixture must be supported independently of the box.
- A box that will carry a ceiling fan must be marked fan rated, and a fan-rated box is a good idea for any heavy fixture.
- Minimum clearance under a chandelier in a walkway: 84 inches from the finished floor.
- Over a dining table the convention is 30 to 36 inches from the tabletop to the bottom of the fixture.
Weigh the fixture first
Chandelier weights vary enormously and the number is rarely on the box in a place you notice. An eight-light metal chandelier is a substantially different object from a three-light one, and glass adds more than people expect.
If the shipping weight is all you have, use it and subtract a little for packaging, then treat the result as the fixture weight for planning. It is better to over-prepare the box than to discover the problem with the fixture half-connected and your arms above your head.
The practical dividing line: a three-light chandelier is almost always inside 50 pounds. An eight-light chandelier, especially one with a wide spread and glass, is the case where you check rather than assume.
What you need before you start
- Voltage tester, the non-contact kind, and a second one if you have it
- Stepladder tall enough that you are not reaching above your shoulders
- Wire strippers, lineman's pliers, a nut driver set
- Wire connectors sized for the conductors you find
- A second person, not optional on anything with weight or a wide spread
- A cardboard box or a stool on the table to rest the fixture on while you wire it
The job, in order
- Turn off the breaker, not the wall switch. Then test at the fixture with the switch on and off. A switched-off wall switch still leaves a live conductor in most boxes.
- Remove the old fixture. Support its weight before you undo the last screw. Note how it was mounted, and photograph the existing wiring before you disconnect anything.
- Inspect the box. Look for a stamped rating and for the words fan rated. Push on the box: a box that moves is not carrying a chandelier. If there is no rating, or the box is a plastic old-work box with wings, or it moves, stop and replace it. A brace bar that installs through the existing hole and spans two joists is the usual fix and it does not require opening the ceiling.
- Fit the mounting strap. The strap that came with the fixture screws to the box. Use the screws supplied with the fixture, not the ones from the old one.
- Set the drop. On a chain fixture, remove links now, on the floor, with the fixture on a table. On a rod fixture, choose which rods to fit. Doing this after the canopy is up is miserable.
- Wire it. Black to black, white to white, bare or green to the ground screw on the strap. Where the fixture has a clear conductor with a rib or a printed stripe, the ribbed one is neutral and goes to white. Make each connection, tug it, then tuck it.
- Raise the canopy and secure it. Push the connectors up into the box tidily rather than crushing them.
- Lamp it, restore power, test. Then check the fixture hangs level, which is easier to correct now than later.
The wire problem nobody warns you about
Older houses give you two conductors and no ground. A fixture with a green wire and nothing to attach it to is a real situation and it is common.
If the box is metal and is itself grounded by the circuit, the fixture ground goes to the box. If nothing in the box is grounded, the honest answer is that this is a circuit problem rather than a fixture problem, and it should go to an electrician. Do not simply cap the ground wire and carry on because the light works. It will work either way; that is not the point of a ground.
The other common surprise is two black wires and two whites, meaning the box is a junction as well as a fixture point. Photograph it before you take it apart, and if the photograph does not make the arrangement obvious, that is your signal to call someone.
Getting the height right
Over a dining table, hang the bottom of the fixture 30 to 36 inches above the tabletop, and add about 3 inches for every foot of ceiling above 8 feet. Over open floor, keep the bottom at 84 inches or more.
Hang it, then look at it from a seated position at the table before you finalise the chain length. A chandelier that looks right from the doorway is often in your eyeline when you sit down, and the seated view is the one that matters.
The fixtures this applies to here
The full ceiling range is in Chandeliers and Pendants, and the largest fixtures in the catalogue are at Kohler Vorleigh.

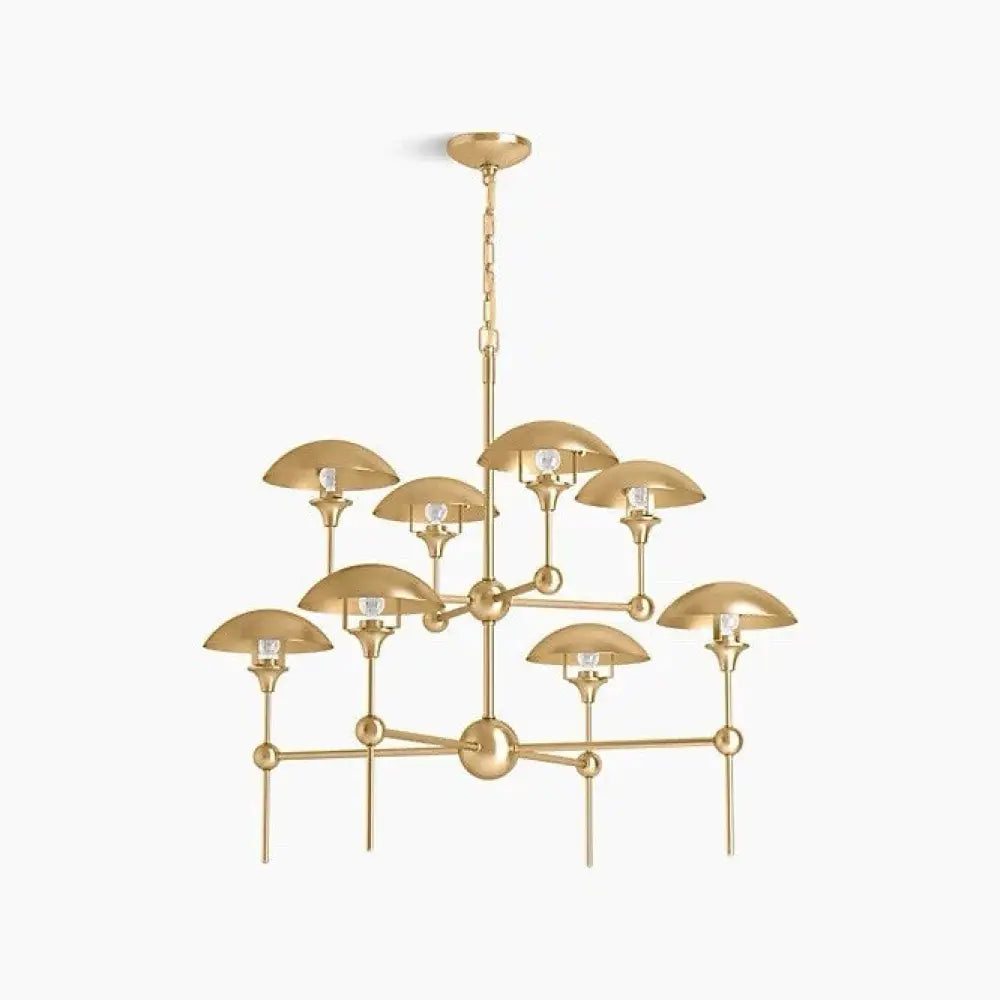

- Kohler K-27951-CH08-2GL Vorleigh 8-Light Chandelier, brushed modern brass. The largest fixture here, and the one to check your box rating against.
- Kohler K-23342-CH03-BZL Damask 20in 3-Light Chandelier, oil-rubbed bronze. A 20 inch three-light, comfortably within a standard box rating.
- Kohler K-27862-CH04-GNL Parohn 26in 4-Light Chandelier, gunmetal.
- Kohler K-31773-CH04-BLL Tone 24in 4-Light Chandelier, clear glass, matte black.
Frequently asked questions
How much weight can a ceiling electrical box hold?
A standard outlet box listed for luminaire support carries up to 50 pounds. Above that, the National Electrical Code requires the fixture to be supported independently of the box, normally with a brace bar spanning the joists.
Do I need an electrician to hang a chandelier?
Not necessarily, if the existing box is sound and rated, the circuit is grounded, and you are comfortable working with the breaker off and testing before you touch anything. Call one if the box needs replacing, if there is no ground, or if the box contains wiring you cannot account for.
Can I hang a chandelier from a ceiling fan box?
Yes. A fan-rated box is built to carry more load and more movement than a standard one, so it is a good host for a heavy fixture.
What if my ceiling is sloped?
You need a canopy or an adapter that lets the fixture hang plumb on an angled surface. Check that the fixture supports a sloped ceiling before you buy, because not all do, and a chandelier hanging at the angle of the ceiling looks exactly as wrong as it sounds.
