By Sam. Last verified 4 September 2026.
Kohler makes grab bars in two distinct registers. The Artifacts range is a decorative bar that happens to be structural, priced and finished like a piece of bath jewellery. The Cardale range is a plain, competent safety bar in a single dark finish across four lengths. Both hold a person. Choosing between them is a question about the room, not about safety.
A grab bar is a rated structural component, not an accessory. The distinction that matters is that a grab bar is engineered and tested to be pulled on hard by someone losing their balance, and a towel bar is not. Never substitute one for the other.
Numbers to keep in mind
- PrimeZen carries seven Kohler grab bars across two families.
- Cardale lengths here: 9, 16, 24 and 36 inches. Artifacts: 36 inches only.
- The ADA Standards for Accessible Design require a grab bar and its mounting to resist a 250 pound force in any direction.
- ADA gripping surface diameter is 1.25 to 2 inches, with 1.5 inches of clear space between the bar and the wall.
- Mounting height for a horizontal bar in a shower or beside a toilet is 33 to 36 inches above the finished floor, measured to the top of the gripping surface.
The two ranges, side by side
| Artifacts | Cardale | |
|---|---|---|
| Lengths here | 36 in | 9, 16, 24, 36 in |
| Finishes here | Polished chrome, oil-rubbed bronze, brushed nickel | Oil-rubbed bronze |
| Look | Shaped ends, decorative flanges, reads as part of a fitted bathroom | Plain tube, round flanges, reads as what it is |
| Where it earns its keep | A finished primary bathroom where the owner resists the idea of a grab bar at all | Anywhere the priority is having the right length in the right place |
| Where it does not | A three-bar shower layout, where the cost multiplies | A room where every other fitting is chrome or brass |
The honest summary is this. If one bar is going into a bathroom that someone is proud of, and the objection you are working around is aesthetic rather than practical, Artifacts is worth the difference. If you are fitting a shower properly with two or three bars, or fitting several bathrooms, Cardale is the range that lets you put a bar in every place that needs one.
Why Cardale comes in four lengths and Artifacts does not
Length is not a preference, it is a function of what the bar is for.
A 36 inch bar is the horizontal bar on a shower wall, long enough to support someone moving from one end of the enclosure to the other. It is also the bar most often specified beside a toilet on the rear wall.
A 24 inch bar suits the control wall of a shower, where the run of clear tile is shorter, and it is a common length for a vertical bar at the entry.
A 16 inch bar fits the short walls that a 36 inch bar simply will not span, which in most retrofits is the wall containing the valve.
The 9 inch assist bar is a different tool. It is a grab point rather than a travel rail, mounted where somebody needs one firm handhold: beside a toilet at the transfer point, at the top of a bath, or vertically at a shower entry where a longer bar would not clear the door track.
The Cardale range covering all four is the practical argument for it. You can specify a shower properly out of one family in one finish.
The thing that actually decides whether a grab bar works
It is not the bar. It is what the bar is fixed to.
The 250 pound requirement applies to the assembly, which means the bar, the fasteners and the backing behind the wall together. A first-rate bar screwed into unreinforced drywall will pull out, and it will do it at the worst possible moment. In new construction, blocking goes in between the studs before the board. In a retrofit, you are either landing both flanges on studs, or you are opening the wall to add backing, or you are using an anchor system explicitly rated for grab bars and following its instructions to the letter.
Standard plastic wall plugs are not in that category. Nor are the screws that come in the box, on their own, in a wall with nothing behind it.
Finish, in a room where safety is the point
Oil-rubbed bronze covers the whole Cardale range here and one of the Artifacts. It is the finish that reads least like hospital equipment, which is the real objection most people have to grab bars in the first place. Polished chrome and brushed nickel Artifacts bars are the choice when the rest of the bathroom is already in one of those.
One practical note that has nothing to do with looks: a very glossy bar is marginally harder to hold with a wet hand than a satin one. It is a small effect, and it is not a reason to reject chrome, but if the user has weak grip strength it is worth a moment's thought.
What we carry
All seven sit in Bath Safety and Grab Bars, and the Cardale family has its own page at Kohler Cardale.
- Kohler K-25157-CP Artifacts 36in Grab Bar, polished chrome. The decorative bar for a chrome bathroom.

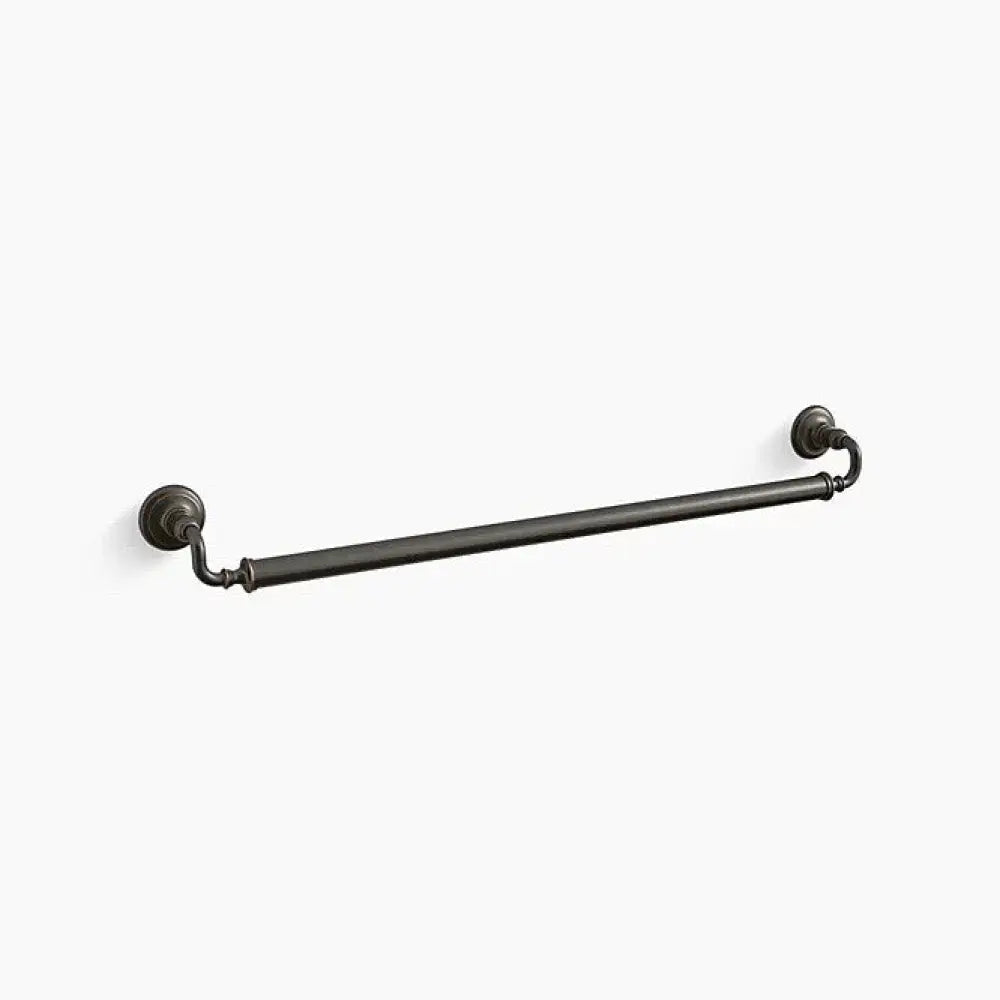

- Kohler K-25157-2BZ Artifacts 36in Grab Bar, oil-rubbed bronze. The same bar in the warmer finish.
- Kohler K-REC32801-2BZ Cardale 36in Grab Bar, oil-rubbed bronze. The long wall bar.
- Kohler K-REC30196-2BZ Cardale 24in Grab Bar, oil-rubbed bronze. Control wall and vertical entry bar.
- Kohler K-REC30195-2BZ Cardale 16in Grab Bar, oil-rubbed bronze. For short walls a longer bar cannot span.
- Kohler K-REC30194-2BZ Cardale 9in Assist Grab Bar, oil-rubbed bronze. A single handhold at a transfer point.
If you need a suite of bars in polished chrome or brushed nickel rather than bronze, this catalogue cannot do it, because only the Artifacts 36 inch comes in those finishes. For a multi-bar chrome layout, look at Kohler's current range on their own site, or at Moen and Bobrick, both of which carry full length ranges in several finishes.
Frequently asked questions
Is a Kohler Artifacts grab bar as strong as a plain safety bar?
Yes. Both ranges are structural grab bars. The difference is the shape of the flanges and the finish options, not the load the bar is built to carry. As always, the strength of the installation depends on the backing behind the wall.
What height should a grab bar be mounted at?
33 to 36 inches above the finished floor to the top of the gripping surface, for a horizontal bar in a shower or beside a toilet. Vertical bars follow different rules. The ADA height guide linked below covers both.
Can I install a grab bar myself?
If both flanges land on studs and you are comfortable finding them accurately, yes. If they do not, the job involves either opening the wall for blocking or using a rated anchor system, and getting that wrong has consequences that a wonky towel bar does not.
Do these bars meet ADA requirements?
The bars themselves are made to the relevant dimensional and strength standards. Whether a finished installation is ADA compliant depends on the mounting height, the clearances around it and the wall reinforcement, none of which are in the box. In a private home, ADA does not legally apply in any case.
